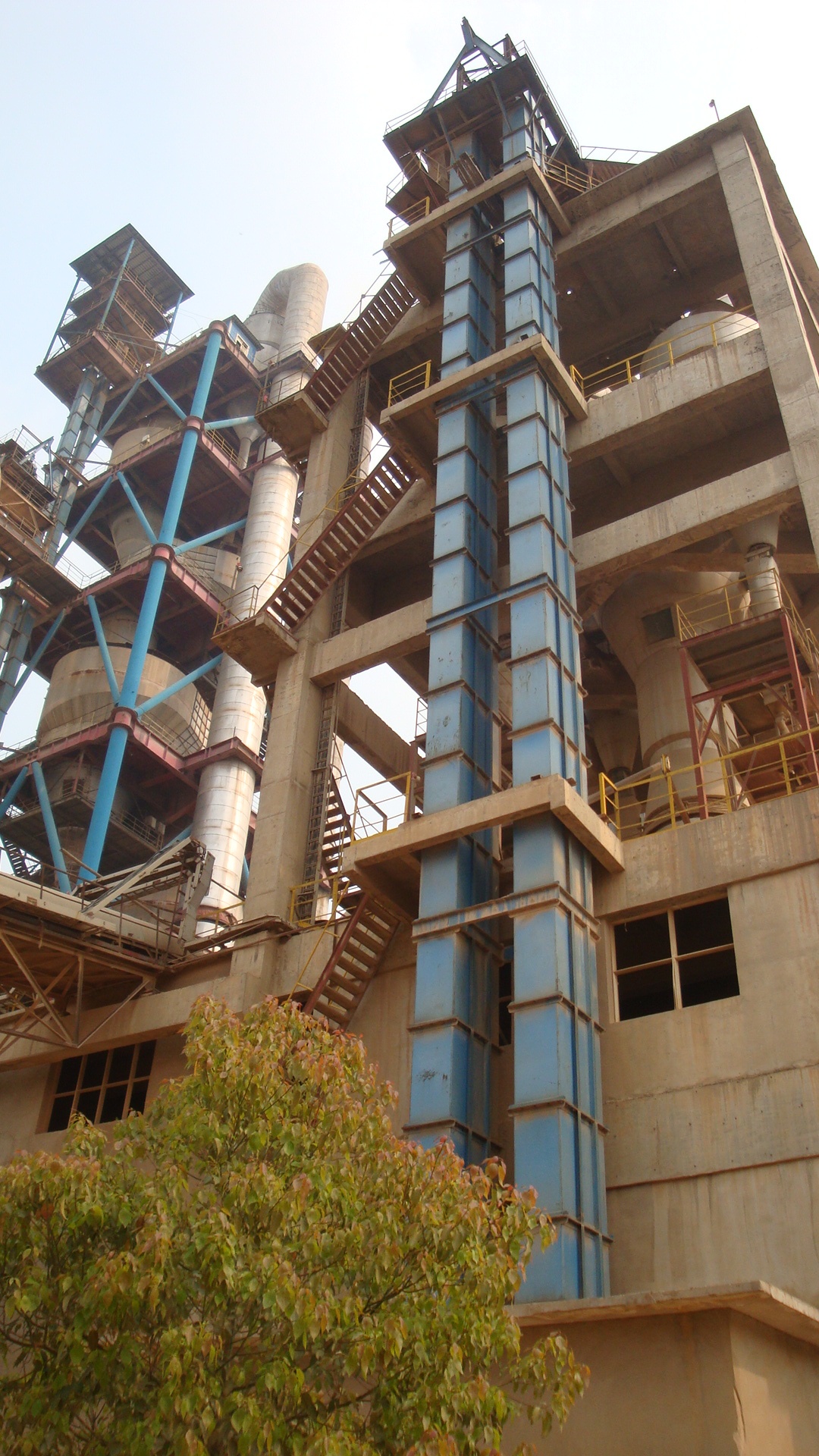

The HBY central chain bucket elevator is equipped with central chains. Its buckets are closely spaced. The width of a standard bucket is between 200 to 1200 mm. Buckets with different width have different carrying capacity.

The HBY central chain bucket elevator is designed to transport highly-corrosive and loose materials such as cement clinker and slag powder. The smooth-wheel structure can reduce power consumption and chain wear, and ensure the continuous conveyance at the same time. The HBY central chain bucket elevator is grouped into the single-bucket-single-chain type and double-bucket-double-chain type.

-Its conveyance capacity reaches 3,000 tons per hour.

-Its conveyance height is up to 80m.

-It can continuously convey materials at temperature of up to 300°C.

-Its tail adopts the self-balancing gravity take-up.

-Its head wheel and tail wheel adopt highly wear-resistant split structure without teeth.

-It runs stably and requires very little maintenance.

-A forging central chain with angle bracket is available with a breaking force of 750-3500 KN.

-All chains are inspected and assembled by special equipment.

-It can adopt dual drive and double-chain-double-bucket to increase conveyance capacity.
